Product overview
Monad Wheel Torque Sensor Instrumentation Assembly is ideal for collecting data in wheel applications,accurately measuring wheel torque and speed during driving, braking and coastdown. Standard model is available for front wheel, rear wheel, and all wheel drive vehicles.
Installation is made without vehicle rework.
Excellent temperature compensation and a unique sensor design provide intrinsic immunity to temperature gradients and radial and cornering loads. Monad Wheel Torque Sensor are constructed of corrosion resistant materials and waterproofed to permit operation in shallow water.
Superior data accuracy is achieved by digital telemetry data transfer with non contact technology.
All components in the assembly are durable and designed to withstand severe testing environments.

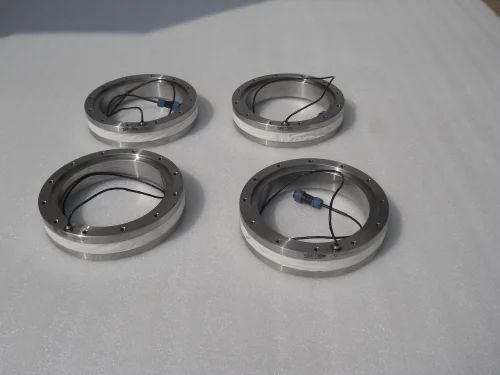

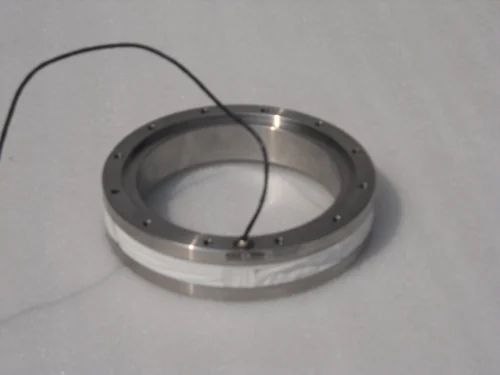

The Monad automobile wheel torque sensor is designed to be bolted to the brake drum or spindle of a car or truck in place of the regular wheel. The wheel is then bolted to the torque sensor. This moves the wheel outward approximately 1-1⁄2 inches from its original location.
Features:
- Integrated weatherproof torque transducer, encoder, and Digital telemetry system
- Weatherproof torque transducer available in a variety of load capacities*
- High accuracy encoder with outputs of 60, 256, 360, 500 or 512 ppr
- 30-100 meter range of wireless telemetry
- Slip ring/encoder/amplifier assembly adapts to a variety of wheel bolt circle patterns
- Durable construction
- Customized to meet user’s testing requirements
- high precision transducer
- High accuracy
- High Linearity
- High overload Limit
- Rugged stainless steel construction
Applications:

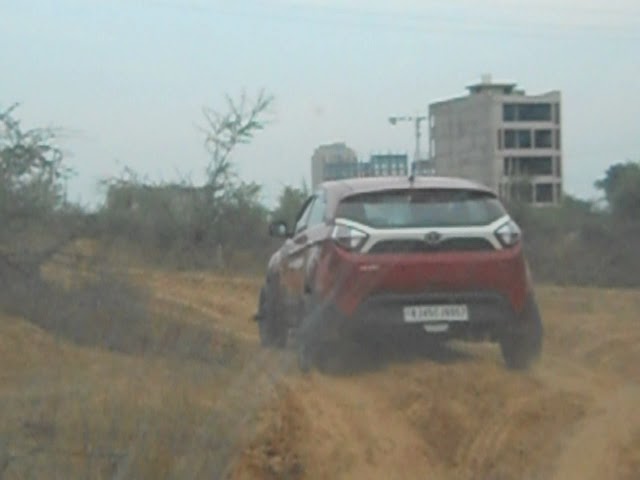

- Characterization of road torque driving conditions test
- Coastdown test
- Emissions correlation test
- Braking test
- Chassis dynamometer tests.
