Product overview

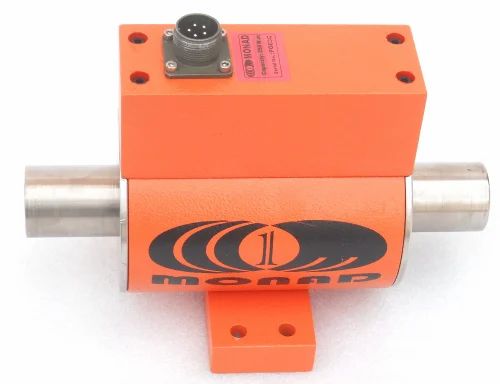

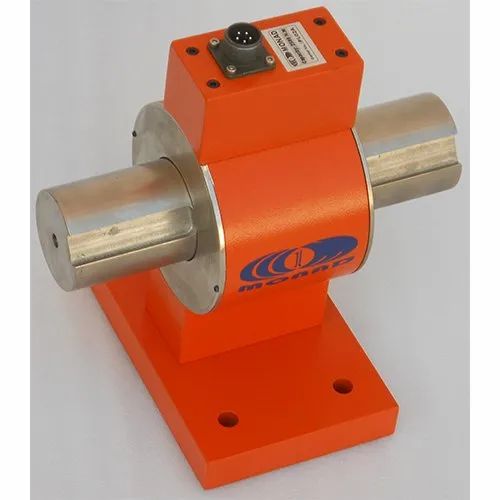

Monad’s Optical Rotary Torque Sensor/Transducer provide an ideal means for precise dynamic measurement of rotary and static torque of less than 500Nm at high speed and high bandwidth.
The importance of torque measurement has been realized in diverse applications for performance optimization and quality control. Emerging potential applications such as medical prosthetics and robotics are expected to be major driving factors for the global torque sensor market in coming years. Torque sensors are being employed in automotive and industrial sectors sincelong time and have recently paved their path into several other fields also. Moand Sensors have gone through numerous technological advancements due to the continuous demand in the market for precise measurement and high performance.
Features:
- Low inertia - High Speed capability because electronics are not fixed on to shaft
- Non contact measurement - use of photovoltaic cells and lightweight gratings
- High bandwidth (up to 50kHz)
- 150% mechanical safe overload
- High accuracy and resolution
- Excellent noise immunity
- Operates both statically and dynamically - Clockwise and anti-clockwise
- Any full scale torque can be specified within the standard range: 10mNm through to 500Nm
- Analog outputs (Voltage and Current) for Torque, Speed and Power
- Digital outputs Interface for connection to PC
- Operates with TorqView to give advanced display modes
- Peak readings can be displayed and reset manually or automatically
