Product overview

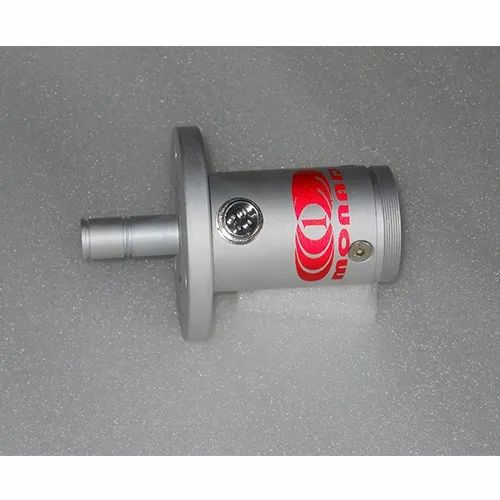

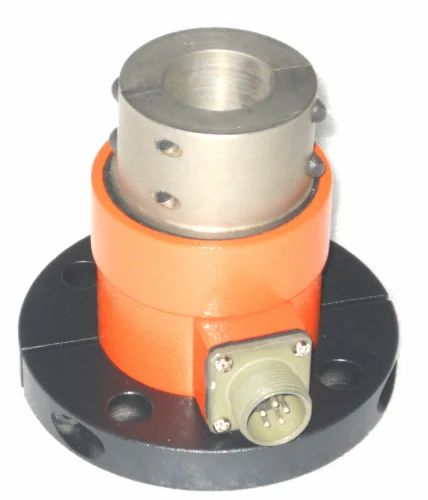

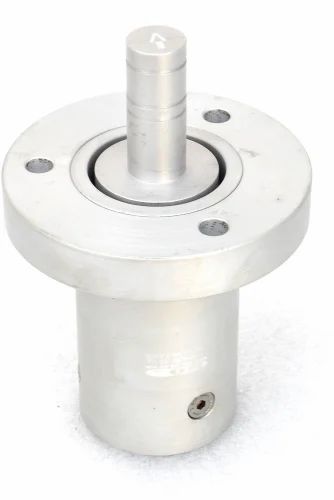

Monad Web Tension Transducers measure web tension forces applied across a roll, using integral horizontal and vertical axis sensors. This innovative and exclusive two-dimensional approach to web tension force measurement enables accurate determination of the true resultant force, as well as the applied angle. Not only does this permit installation and measurement at any mounting angle or roll orientation, it also combines to form an expert diagnostics system that produces the highest level of web tension measurement confidence available today.
Features:
- Stainless steel construction
- Sensitive to high & low tension
- 360° beam overload stop protection
- Wide load range from 5Kg to 500Kgs
- High output, excellent linearity, low hysteresis
- Supplied with industry standard bearings
- Unique design compensates for shaft expansion, misalignment & bending
