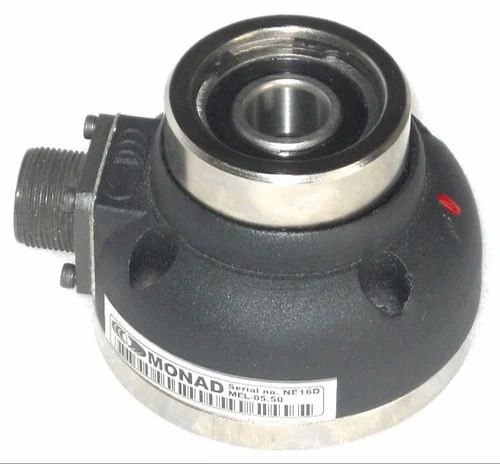

MEL-05 Type Load Cell

Name: MEL-05 Type Load Cell
Brand: Monad

MEL-05 Type Load Cell Monad Web Tension Transducers measure web tension forces applied across a roll, using integral horizontal and vertical axis sensors. This…

Request a quote +91 94140 68805

Key specifications

Capacity	50 Kg.
Brand	Monad
Excitation Voltage	10 vdc - max. 15 vdc
Cable Length 4 Core Screened	500 cm
Ultimate Overload Of Rated Capacity	150.00%
Country of Origin	Made in India
Tightening Torque	2 .2 m.Kg
Finishing	Electroless nickel plated steel alloy
Production Capacity	20000

Made in India

Calibrated in-house

Custom ranges

Product overview

MEL-05 Type Load Cell Monad Web Tension Transducers measure web tension forces applied across a roll, using integral horizontal and vertical axis sensors. This innovative and exclusive two-dimensional approach to web tension force measurement enables accurate determination of the true resultant force, as well as the applied angle. Not only does this permit installation and measurement at any mounting angle or roll orientation, it also combines to form an expert diagnostics system that produces the highest level of web tension measurement confidence available today. The Load ecll is machined from a high strength corrosionresistant stainless steel to yield a low profile single piece construction that incorporates tubular sensing sections at each end. Advantages Two full Wheatstone Bridges are mounted internally to each sensor and provide] output signals in the X and Y plane hat are externally, vectorially summed to determine the magnitude and direction of the resultant force. Each bridge is functional to 121C, and dead weight calibrated for precision accuracy. The cylindrical sensing sections are sealed to meet IP67 requirements. Environmental sealing ensures long-term reliability for humid, wet, or wash down locations Wide range Space effective. High overload limit High accuracy and repeatability Suitable for both live and dead shaft rollers. Ideal for low to High tension applications Built-in low friction, self-aligning bearings. On-line sensing through Digital Indicator Suitable for both live and dead roller applications. Key Words Web Tension Load Cell Load Cell with Web Tension Load Cell for Web Tension Load cell to measure Web Tension Web tension Load Cell Web Tension Measuring Load Cell Web Tension Control Load Cell Web Tension Application Load Cell Tension Transducer Web Tension Transducer Tension Coltrol Load Cell Tension Control Load Cell for Tension Control Tension Control Application Load Cell Load Cell application Tension Control Tension control Sensor Web Tension Sensor Web Tension Measuring Sensor Web Tension Application Sensor Tension Control Load Cell Sensor Load Cell Sensor
