Product overview

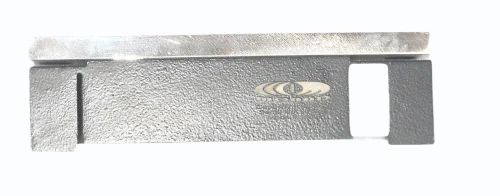

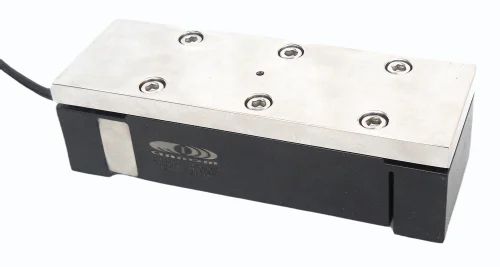

MPB TYPE LOAD CELLS
The Horizontal Pillow Block Series load cells for the web processing industries have the same dimensions as conventional load cells and mount in the same way. But they measure only the horizontal force component of the web tension. Unlike load cells that measure along the vertical axis, they are not forced to sense the roll weight along with the web tension. So these load cells can be sized to the tension level alone, and function at the high end of their measuring range, where load cells perform best. The result: always optimal tension measurement performance – even when rolls are heavy and tension light.
- Quality load cells that eliminates drift and recalibration
- Wide operating range
- Easy to apply
Features:
- Wide range
- Space effective.
- High overload limit
- High accuracy and repeatability
- Suitable for both live and dead shaft rollers.
- Ideal for low to High tension applications
- Built-in low friction, self-aligning bearings.
- On-line sensing through Digital Indicator
- Suitable for both live and dead roller applications.
