Product overview

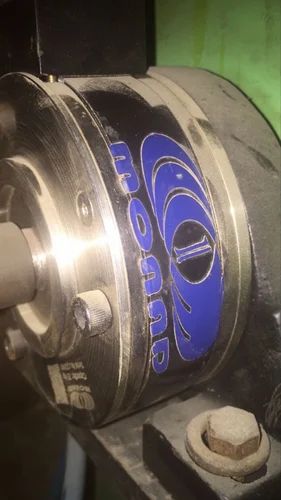

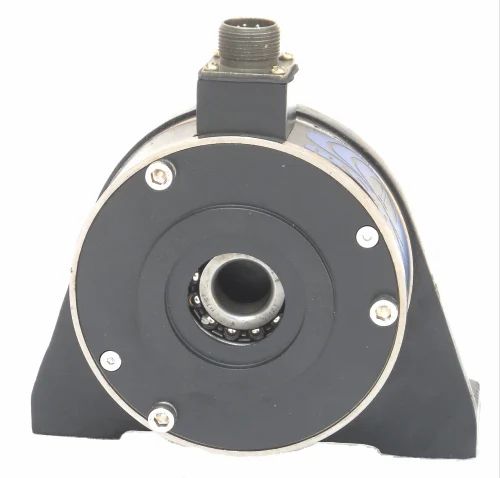

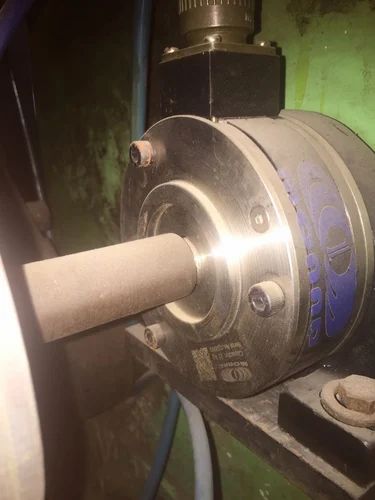

SW Type Load Cell:
SW Series loadcells measure low resultant tension forces with small wrap angles.
Designed for use in applications such as winders, unwinders, rewinders, coaters, laminators, and printing presses, they eliminate drift and frequent recalibration problems oftenencountered with conventional half-bridge semiconductor-type load cells.
Full Wheatstone-bridge, temperature-compensated strain gage construction enables precise accuracy with genuine “non-drift” signal stability. MWT load cells are of a ruggedcompact size with high overload capacity. Outline dimensions are identical to existingequipment, thereby making possible simple, drop-in replacement.
Monad Web Tension Transducers measure web tension forces applied across a roll, using integral horizontal and vertical axis sensors. This innovative and exclusive two-dimensional approach to web tension force measurement enables accurate determination of the true resultant force, as well as the applied angle. Not only does this permit installation and measurement at any mounting angle or roll orientation, it also combines to form an expert diagnostics system that produces the highest level of web tension measurement confidence available today.
The Load cell is machined from a high strength corrosionresistant stainless steel to yield a low profile single piece construction that incorporates tubular sensing sections at each end. Two full Wheatstone Bridges are mounted internally to each sensor and provide] output signals in the X and Y plane hat are externally, vectorially summed to determine the magnitude and direction of the resultant force.
Features:
- Stainless steel construction
- Sensitive to high & low tension
- High output, excellent linearity, low hysteresis
- Supplied with industry standard bearings
- Unique design compensates for shaft expansion, misalignment & bending
