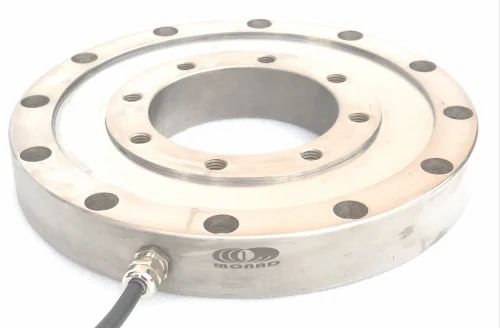

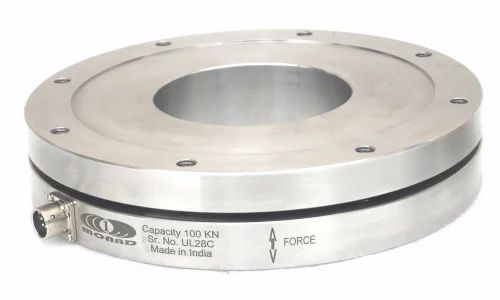

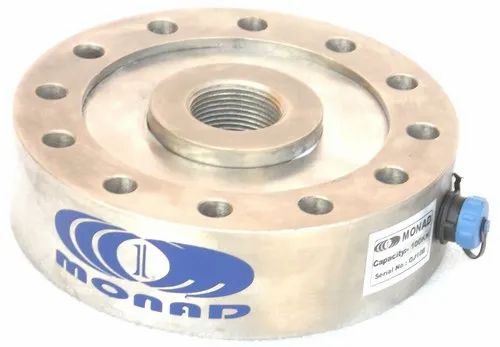

Fatigue Compression Load Cell
The low profile Fatigue Rated compression-Tension Load cell is designed as the ultimate solution for some difficult applications with critical height for safety reasons.
Key specifications
| Capacity | Capacities: 5t,10t,25t,50t,100t,250t,300t |
|---|---|
| Type | Fatigue Compression Load Cell |
| Brand | Monad |
| Usage/Application | Truck / Rail scales - Silo / Hopper / Tank weighing - Universal Material Tester - Tensile / Pulling |
| Material | Electroless nickel plated alloy tool steel,Stainless Steel available |
| Rated Output | 2.0 mV/V |
| Excitation Voltage | 10 Vdc or Vac rms |
| Operating Temperature | -20 to +60 DegreeC |
| Insulation Resistance | >5000 mega-ohms |
| Safe Overload | 150 % of R.C. |
| Country of Origin | Made in India |
Made in India
Calibrated in-house
Custom ranges
