Product overview

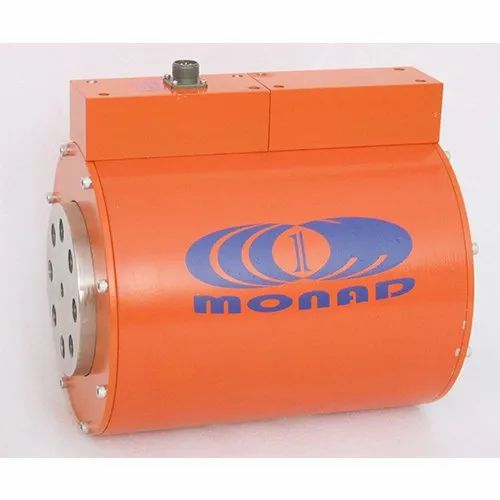

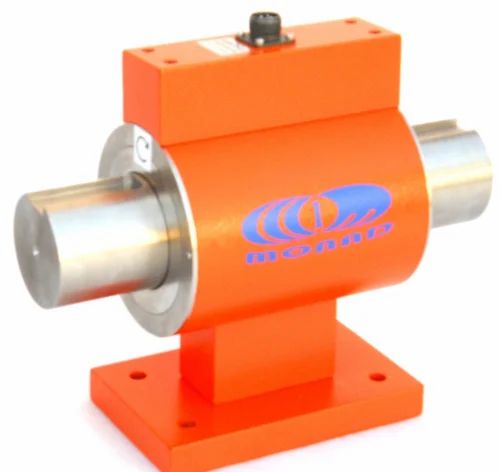

Monad Rotary Torque Sensor category has Torque Sensors which are used in slip ring and non contact rotary torque measurements. The most common utilization for these models is for inline/reaction applications, where measurements can be made in both clockwise and counterclockwise directions.
The Rotary Drive Torque Sensorsare CE certified and utilise a bonded metal foil strain gauge. Monad will gladly work with you to customize or modify our Torque Sensors to meet your precise needs
The MONAD Torque Transducer with bellow couplings can be used in any mounting position (horizontal, vertical or oblique). With vertical or oblique operation, please ensure that additional masses are sufficiently supported.
- Contact less transmission of the measurement signal
- Measurement on rotating and stationary parts
- Cylindrical shaft ends for non play friction joints
- Integrated measuring system for speed and angle of rotation
Features:
- Minimal shaft length - High shaft stiffness
- Low inertia - High Speed capability because electronics are not fixed on to shaft
- Non-contact/brushless measurement - simple RF couple for power/signal transmission
- High bandwidth 1 Hz to 10 kHz
- 150% mechanical safe overload
- High accuracy (0.25%) and resolution (0.02%)
- Excellent noise immunity
- Operates both statically and dynamically - Clockwise and anti-clockwise
- Any full scale torque can be specified within the standard range: 1N.m through to 10000 KN.m
- High-speed operation up to 30,000RPM

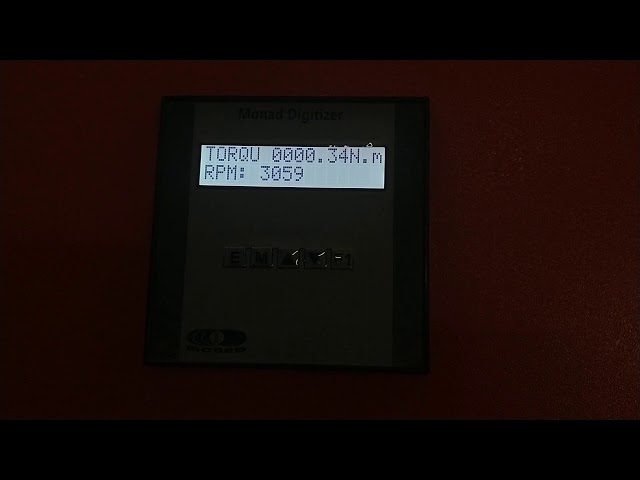

- The Transducer Display with datalogger is available for all torque series transducers and displays values of torque, peak torque, speed and power while making a xls data record if required.
- Adaptable for portable usage
- No special adapter tools required
- Precision repeatable torque measurements
- Calibration reference for “hard usage” mechanical torque wrenches
- MRT-05 Torque transducers are suitable for torque monitoring and process control on any torque wrench test and calibration
- Supports non-contact frictionless sensors.
- Support BLDC, PMSM, PMDC, Induction, Stepper motors.
- Motor power switching is done automatically by the system.
- Motors can be tested inside their applications.
- Tests results are provided graphically and tabulated.
- Test reports in Excel format.
Application:
- Torque Callibration
- Torque Testing
- Safety and Testing
- In-line applications on rotating shafts
- Manufacturing Testing Labs
