Product overview
Pedal force transducers are Ideal for measurement of Brake, clutch, accelerator or hand brake pedal force. Suitable for Pedal force measurement of the automotive Four wheelers,2 or 3 Wheelers, Car, Tractor, buses, Trucks and material handling equipments.

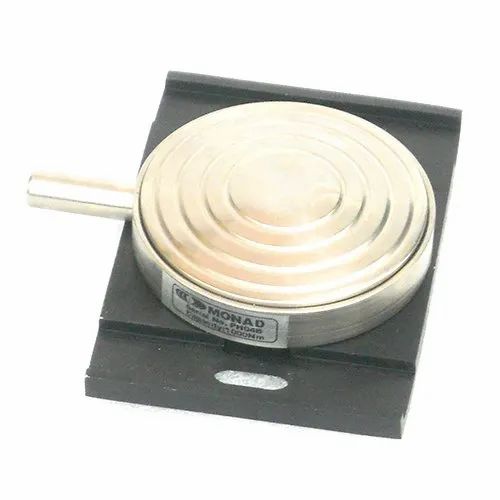

The MONAD Pedal Force Sensor measures the force exerted on the brake/clutch/acceleration pedal
The Pedal force transducer mounts quickly and easily. The sensors can be used with brake/clutch/acceleration test or directly during normal driving. Pedal force transducers are independent of the angle of the activation force.
- Determine force exerted on the pedal during tests.
- Record the pedal force independent of the angle of activation.
- Applicable for use with standard test stands and for normal driving.
Features:
- Lowest nonlinearity and hysteresis of any brake pedal load cell – < 0.05%
- Ultra low height
- Low sensitivity to off-center loads
- Mounts directly to pedal with included strap(s)
- Interchangeable mounting plates
- For use with gas, brake or clutch pedal
- Data logging in xls format
Application:
- A tool for ensuring Drivability,
- Vehicle brake development,
- Vehicle Handling,
- Transmission shift quality,
- Legislative and safety testing as per National/International standards.
- Best in fatigue/performance test benches.
