Brake Force Sensor
Pedal Force Sensors

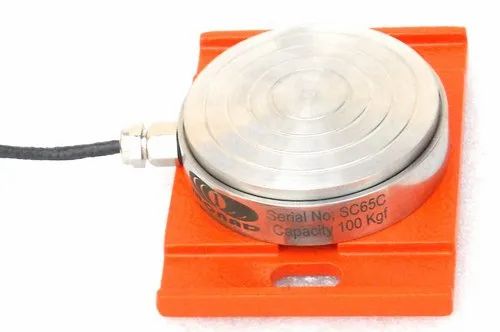

Brake Force Sensor

Brake force transducers are used for measurement of force exerted on the brake.The MONAD Brake force transducer mounts quickly and easily . The sensor can beused with…

Request a quote +91 94140 68805

Key specifications

Transducer TypeForce Transducer
BrandMonad
Linearity Error+0.01% of RO
Usage/ApplicationAutomoblie
Product TypeBrake Force Sensor
MaterialConstruction material Load cell : Steel alloy,Stainless Steel,Mounting Plate Aluminum Alloy
Repeatability And HysteresisNon Repeatability +0.01% of RO,Hysteresis +0.02% of RO
Temperature Range-20 to 60 DegreeC
Ambient Temperature-10 to 50 DegreeC
Country of OriginMade in India
Made in India
Calibrated in-house
Custom ranges

Product overview

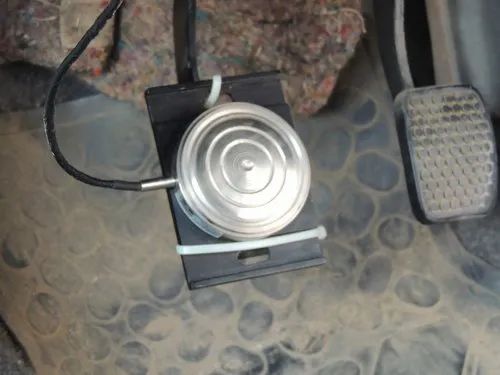

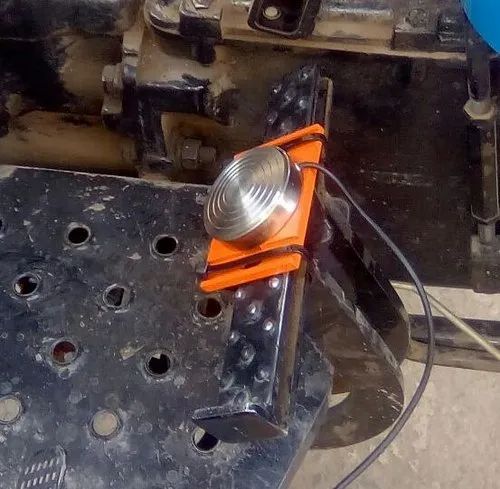

Brake force transducers are used for measurement of force exerted on the brake.The MONAD Brake force transducer mounts quickly and easily . The sensor can beused with brake/clutch/acceleration test or directly during normal driving. Brake force transducerare independent of the angle of the activation force.
CAPABILITIES:
# Determine force exerted on the brake during tests.
# Record the brake force independent of the angle of activation.
# Applicable for use with standard test stands and for normal driving.
