Three-Point Hitch Dynamometer
Digital Dynamometers

Three-Point Hitch Dynamometer

Monad Three Point Hitch Dynamometer, are intended for the measurement of Draft Load. This measured Load is further suitable for control tasks. The valid safety…

Request a quote +91 94140 68805

Key specifications

Usage/ApplicationResearch & Testing
BrandMonad
Display TypeDigital Data Logger
ColorBlack
Product TypeDynamometer
Country of OriginMade in India
Made in India
Calibrated in-house
Custom ranges

Product overview

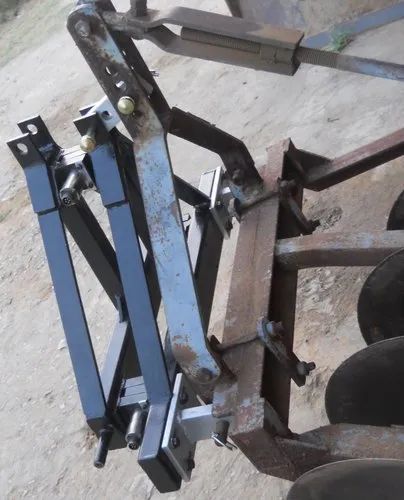

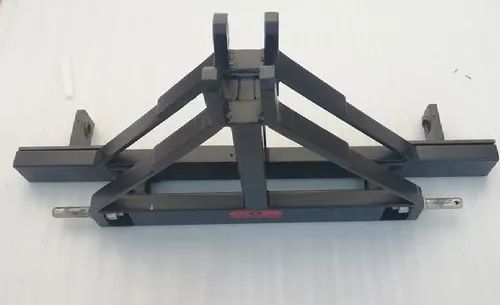

Monad Three Point Hitch Dynamometer, are intended for the measurement of Draft Load. This measured Load is further suitable for control tasks. The valid safety regulations should be absolutely respected. The torque sensors are not safety components in the sense of the intended use. The sensors need to be transported and stored appropriately. The assembly, commissioning and disassembling must take place professionally.A three-point hitch accessory was designed and constructed to measure draft, vertical force, and torque simultaneously and independently in a vertical longitudinal plane caused by an implement. Special features of the force dynamometer are dual-loading range and fast-hitching capability. The force dynamometer is designed for tractors in the 75- to 100 kW power range with maximum draft capacity of 66,700 N in the dynamometer's high-range and 36,000 N in the low-range.
