Product overview
Monad Electronics Multi Axis Load Cells are designed to measure a multiple of forces and moments simultaneously with a single Load Cell.
Multi Axis Load Cells can accurately measure up to six components (3 forces and 3 moments) of load. For example, Independent strain gauge bridges are used to measure three directions of force: Longitude, Latitude, and Vertical, as well as, the moments about each force direction. Separate receptacles or cables are provided for each axis of measurement. A careful structural analysis has been done to isolate the forces and moments, which results in a reduction of cross-talk sensitivities.
All designs are one piece flexures, machined and gauged to give optimum output, stiffness and durability. One of our innovative designs, the Stick Shift / Gear Shift Knob Transducer offers a lightweight, robust feature and comprised of stainless steel.
Monad Advanced Sensor Technology Multi Axis Load Cells offer a variety of ‘flexible’ mounting options comprising of threaded center holes for ease of fixturing, and various signal cable exit options (radial or axial).
Our meticulous approach to the design of our Multi Axis Load Cells has given us a product line that can be used for impact testing, measuring rolling resistance, bolt load testing, tire testing applications, etc. Monad Electronics Advanced Sensor Technology sensor applications are as broad as its Multi Axis Load Cell capabilities.
Features:
- Made of high strength Stainless steel construction
- Measures torque and thrust simultaneously
- High stiffness
- Low Cross Talk
- Temperature compensated
- May be used for fatigue testing machines, tire uniformity testing and many other automotive testing applications.
- Multi Axis Bi-Axial Load Arm

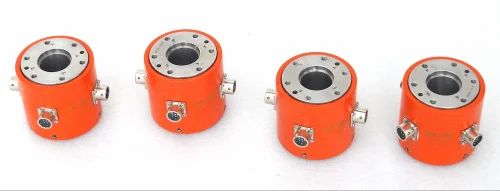

- Torque and Tension Biaxial Sensor

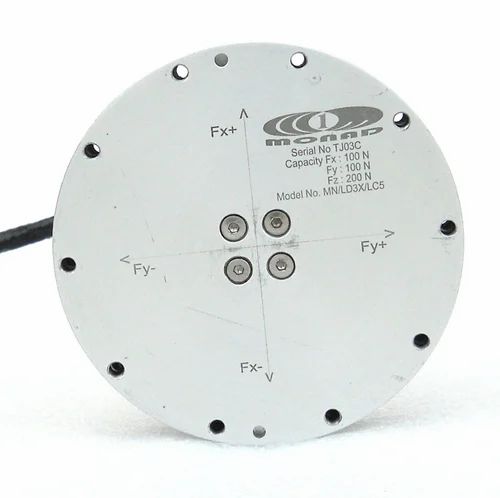

- Multi Axis Tri-Axial Load Cell (NEW)

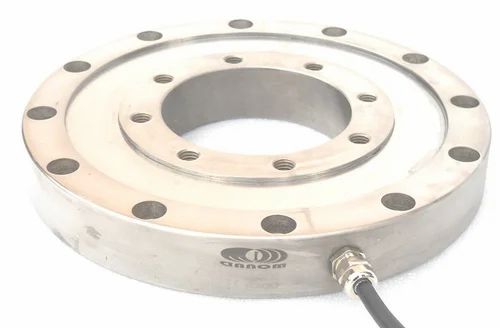

- Multi Axis Low Profile Thrust and Moment Pancake Sensor (Tension Base included)
