Product overview

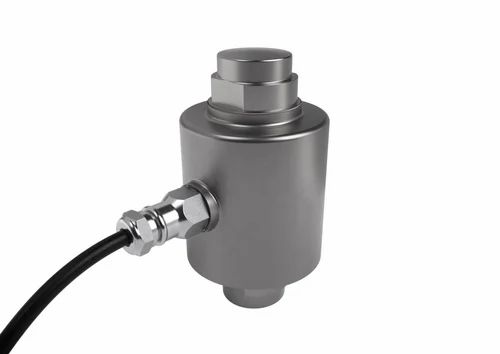

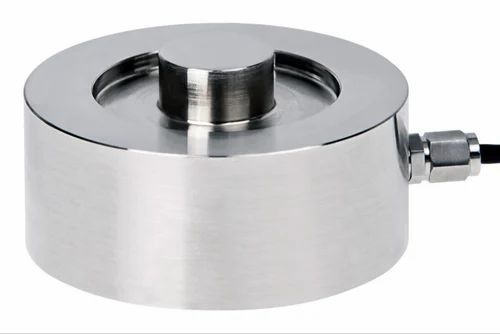

This Load cell is used as Master Load cell for Calibration of Load cells and other force/Load measuring device or sensors.
Monad High Accracy Load Cell is calibrated with the use of dead weights and high accurate standards.
Monad Loadcell are better than 0.005 % of Full Scale (Ultra Precision) .01 % of Full Scale (Precision) and 0.02 % of Full Scale (Calibration Grade)
Features:
- Designed for Metrology Lab Use and field calibration
- Low Creep,
- Low Sensitivity to Rotation Error,
- Low Sensitivity to Reproducibility Errors
- Calibrated Directly by Monad with Dead Weight Primary Standards
- Standard Wiring Information, A + Excitation, B + Signal, C – Signal, D – Excitation
- Designed for Metrology Lab Use
- Meets ASTM E74 Class A to 2% of Range, Class AA to 10% of Range (When Calibrated with Primary Standards)
- Lowest Creep
- Lowest Reproducibility Errors
- Includes ASTM E74 Transfer Standard Tension &Compression Calibration
- Temperature Compensated
- Proprietary Modulus Compensated Strain Gages
- Low Sensitivity to Rotation Error
