Product overview

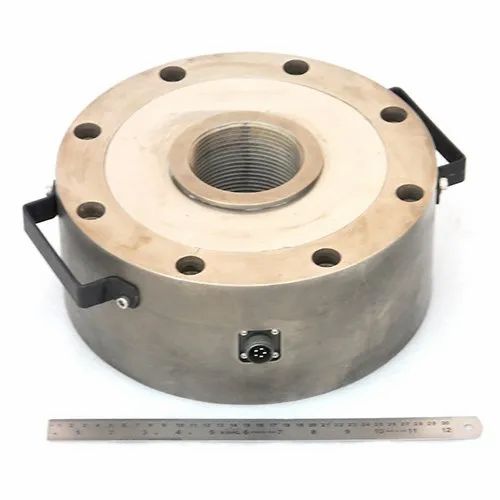

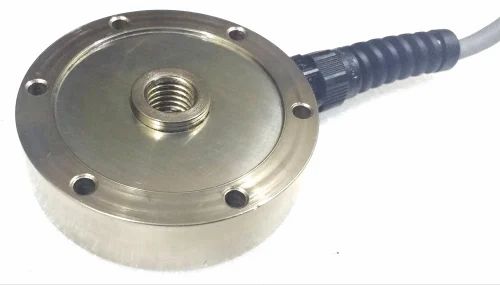

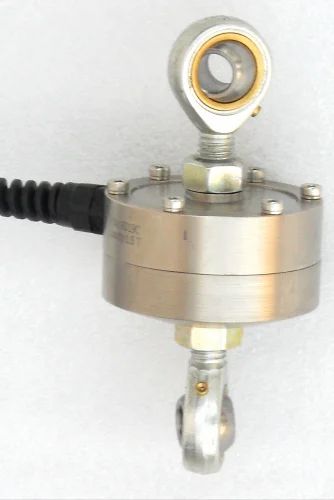

The Fatigue Rated Load Cells are similar to the Universal Load Cell models and are designed for fatigue measurement/control applications in both tension, compression and/or tension/compression directions. The load cells possess very low deflection, high natural frequencies, and a one billion cycles fatigue rating!
Monad Electronics, Fatigue rated load cells are specifically designed for component durability and fatigue test machines where highly cyclical loading is present. These rugged load cells are extremely resistant to extraneous bending and side loading forces. They are used for material testing, component life cycle testing and structural testing. All fatigue rated load cells are guaranteed against fatigue failure for 100 million fully reversed cycles.
Features:
- Monad Fatigue load cell comes with , low profile, 150% static overload protection.
- Wide range of capacities from 500 kg to 200 t
- Stainless steel construction with electro-polished finish
- Environmental Protection IP68/IP69K with complete laser welded hermetic sealing
- Low profile design
- Calibration in mV/V/Ω
- Precison Load Sensing
- Rugged
- Internally Sealed Strain Gages
- Easy Installation
- Direct Force Measurement
- High Natural Frequency
Applications:
- Dynamometers (torque arm)
- Static material testing
- General force measurements
- Structural testing
- Component life cycle testing
- Calibration reference
- Bumper Impact testing
- Seat structure testing
- Crash Barriers
- Vehicle road load simulators
- Material test machines
- Concrete structures
- Lifecycle testing on hip and knee replacements
- Industrial automation
| Capacity | Rate |
| 100 kg to 500 kg | Rs. 5,250.00 |
| 600 kg to 750 kg | Rs. 6,000.00 |
| 1 to 3 Ton | Rs. 8,250.00 |
| 5Ton | Rs. 11,250.00 |
| 7.5Ton | Rs. 14,250.00 |
| 10Ton | Rs. 18,750.00 |
| 15Ton | Rs. 21,750.00 |
| 20Ton | Rs. 26,250.00 |
| 25Ton | Rs. 33,750.00 |
| 30Ton | Rs. 41,250.00 |
| 40Ton | Rs. 48,750.00 |
| 50Ton | Rs. 56,250.00 |
| 75Ton | Rs. 78,750.00 |
| 100Ton | Rs. 96,750.00 |
| 200Ton | Rs. 146,250.00 |
| 300Ton | Rs. 217,500.00 |
| 500Ton | Rs. 322,500.00 |
