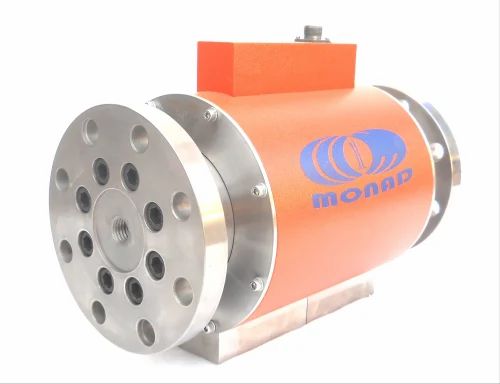

Digital Telemetry Rotary Torque Measurement System Monad is pleased to introduce the latest addition to our torque transducer product portfolio, the new Digital Telemetry Rotary Torque Measurement System, available in many different configurations to meet the needs of your particular torque measurement application.
Specialise Feature and Application:
True Torque Measurement –Monad’s non-contact digital telemetry design enables higher integrity of the data capture through higher resolution and no mechanical interferences; resulting in a more accurate indication of the actual torque being experienced.
Flexible Modular Design –Monad’s modular design can easily be adapted or customized to fit into many different types of test stands to meet specific test application requirements.
Simple Installation, Setup, and Operation – The Sensor is compact with quick attach wiring connectors for quick commissioning. It has easy to set up parameters via the software system and enables you to make test parameter adjustments on-the-fly.
FCC / CE Certified EMC Compliant – The sensor complies with all regulatory standards for safe RF emission standards and will not cause interference with other equipment.
Features:
- Digital telemetry, non-contact
- 0.05 % full scale, total system accuracy
- DIN & SAE and companion flange compatible
- Shaft-to-Shaft and Integral Coupling compatible
- High torsional stiffness
- Low rotating inertia
- Multiple, field selectable, analog outputs
- Scalable output "on the fly"
- Compact, modular design, ideal for customization
- Power supply adapter included (FCC compliant)
- Shunt calibration standard
- Remote shunt calibration option available
- Full software set-up
- Zero and span adjustments through TMS software, no potentiometers or dip switches needed
- FCC, CE certified, meeting all EMC emission and susceptibility requirements
Potential Applications:
- Powertrain testing: engine, engine diagnostics, cold engine, transmission, driveshaft, & rear axle differential
- Dynamometer
- Brakes
- Wheel hub
- Drive wheels
- Continuous track, heavy equipment
- Oil & water pump testing
- Jet engine/turbine testing
- Wind power gearbox and torsion blade testing; propeller testing
- Turn up/Turn down gear box testing
- Industrial motor / generator testing
- Auxiliary component efficiency testing
