Product overview
Compression through Hole Load Cells:

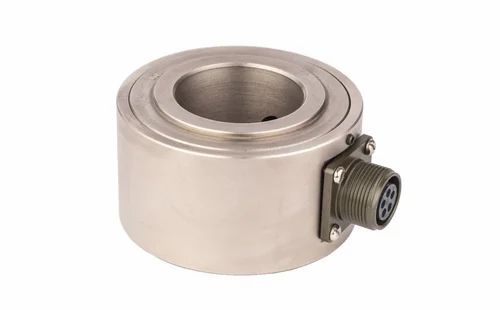

Compression Through (Thru) Hole Load Cell Transducers are miniature load cells designed specifically for measuring fastener clamping forces. The design provides high stiffness in a small package, making these load cells ideal for static and dynamic measurements on fasteners, or structural test applications where space limitations exist. Force washer transducers come in a variety of English and Metric sizes.
Monad Load/Force Compression Through Hole Load Cell series also offer high accuracy and high stiffness. The Load/Force Compression Through Hole Load Cell can be modified or customized to meet customer requirements.
- Standard cable includes 3 Meter 4 Conductor shielded cable
- Position Sensitive
- Low Deflection
- Stainless Steel / Alloy Steel Construction
- Both Tension & Compression
- Utilizes Strain Gauge Technology
The Compression Through Hole Load Cells can be used as a washer, sensing compression force, when utilized as a compression load cell. While choosing a flat washer, make sure that the inner diameter of the flat washer is less than the diameter of the inner ring of the load washer to insure that the active ridge is seated on the flat washer.
