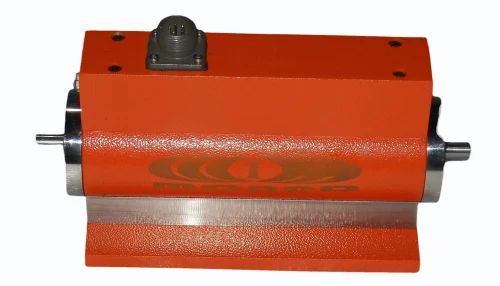

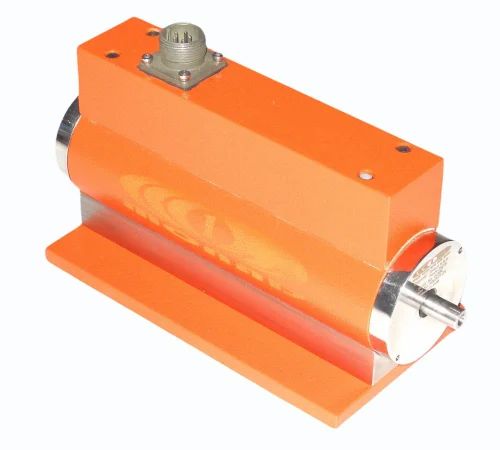

Propeller Dynamometer Torque sensor

Monad Propeller Dynamometer is a measuring device used for standard hydrodynamic model test conducted in towing tank or circulating water channel. Depending on…

Key specifications

MaterialStainless Steel
Type Of InstrumentsForce & Torque sensor
ColorOrange
Model Name/NumberMN-PD-55
Usage/ApplicationIndustrial
Accuracy0.1%
Capacity200N.m
Display TypeDigital
Weight2.4 Kg
Dimension60X250mm
Item CodeMN-PD-55
Production Capacity25 pcs/Anum
Delivery Time3-4 weeks
Packaging DetailsIndustrial carrying case
Made in India
Calibrated in-house
Custom ranges

Product overview

Monad Propeller Dynamometer is a measuring device used for standard hydrodynamic model test conducted in towing tank or circulating water channel.
Depending on particular version of the Dynamometer, Monad Dynamometers can be used for resistance, propulsion or sea-keeping model test of ships.Monad has range of multi component Dynamometers with wide range of measuring capacities.
It allows for selection of optimal dynamometer version considering the range of resistance force measurment and weight of towed model.
